Description

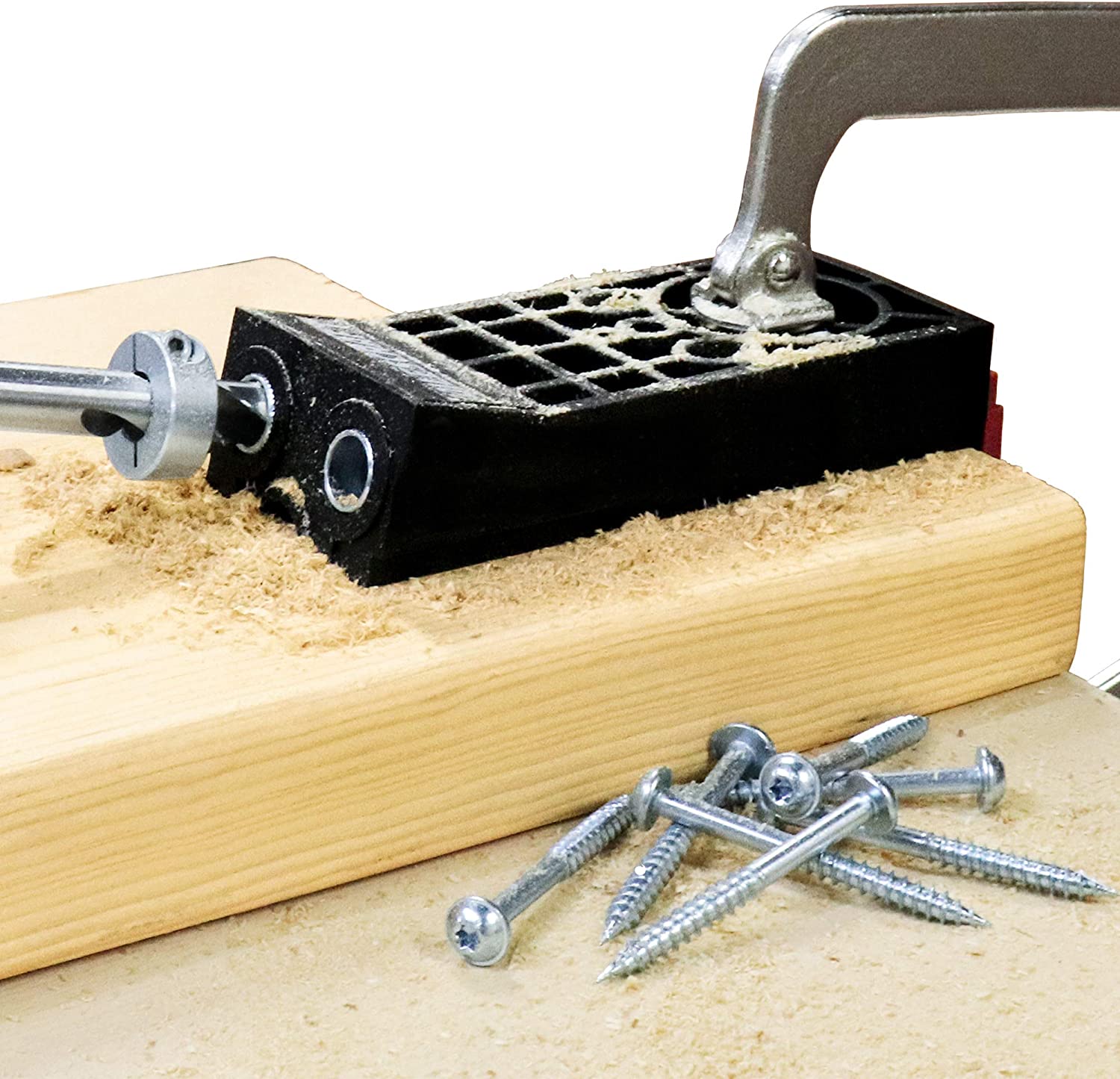

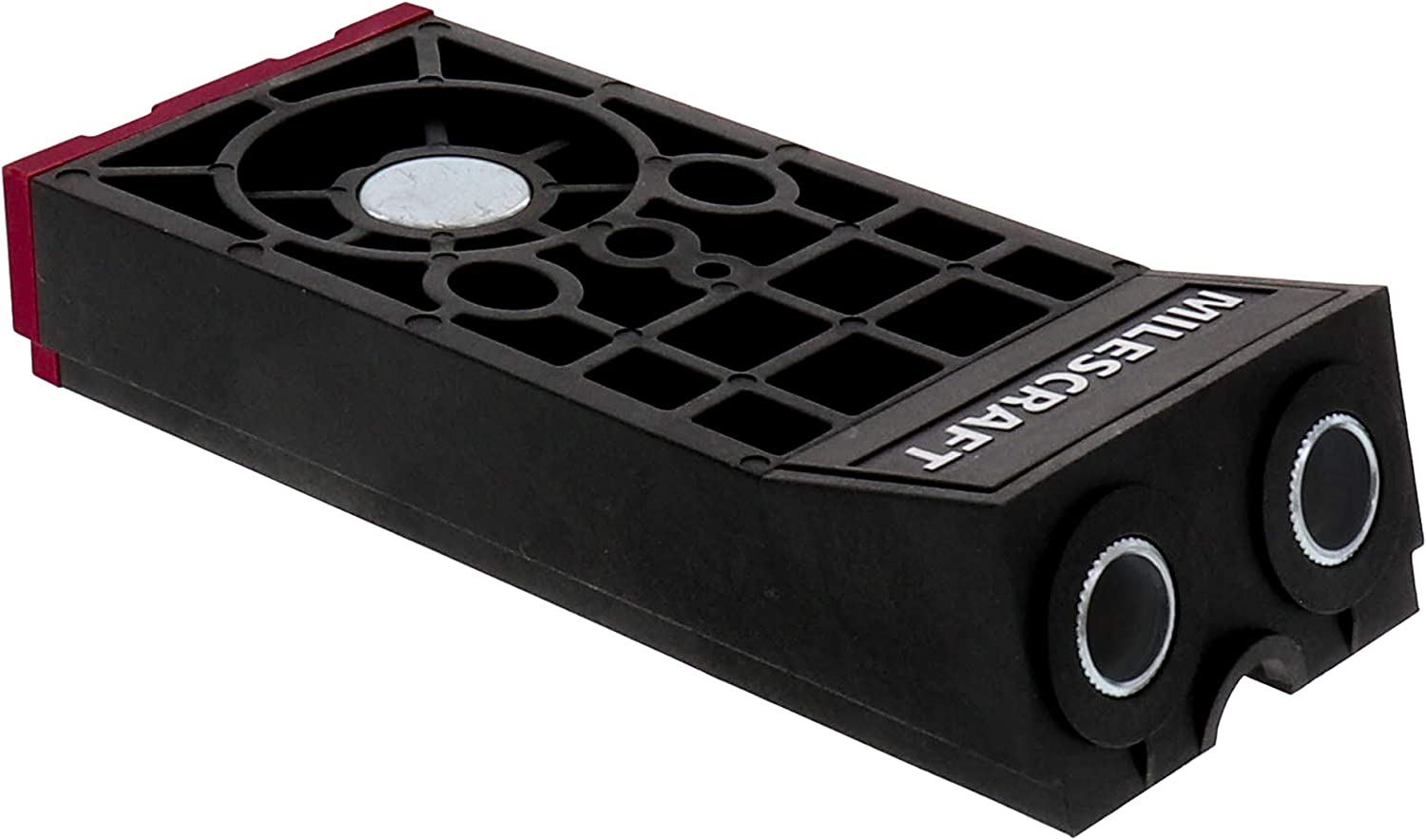

The Milescraft PocketJig300™ heavy-duty pocket hole jig is the ideal solution for bigger projects. Whether you’re building decks, fences, outdoor furniture, or framing walls, this HD jig has you covered!
- PocketJig300™ HD Pocket Hole Jig Kit – Designed For Bigger Builds
- For use on materials 1-1/2″ (38mm) and larger
- Perfect for 2 x 4 projects
- 50% stronger joints than using standard pocket hole jigs
Technical Data
| Jig Material |
Reinforced Nylon
|
| Drill Guides |
(2) 1/2" (12.7mm) diameter
|
| Drill Guide Bushing Spacing | 1-7/16" (36mm) |
| Clamping Method |

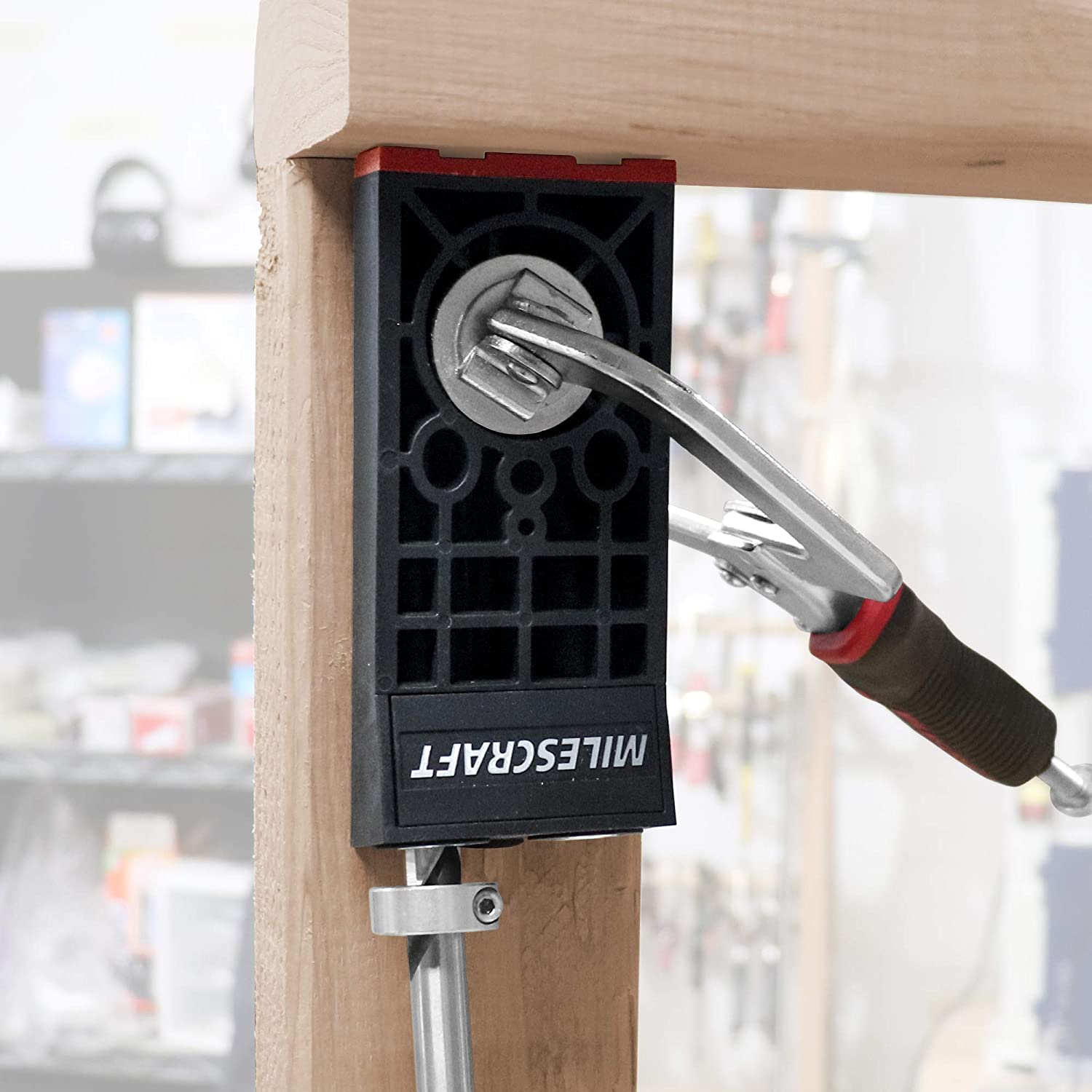

Works with any clamp
|
| For use with |
1-1/2" (38mm) and thicker material
|
| Drilling Angle | 15° |
| Screws |
2.5″ (63.5mm) HDPocketScrews, T25 Torx Drive (10 pcs.)
|
| Driver |
6" Magnetic T25 Torx® Driver, 1/4" (6.35mm) shank
|
| Drill Bit |
1/2" (12mm) HSS PocketBit™, 1/4" (6.35mm) shank
|
| Compatible With | T25DriverSet™ |
| HDPocketBit™ | |
|

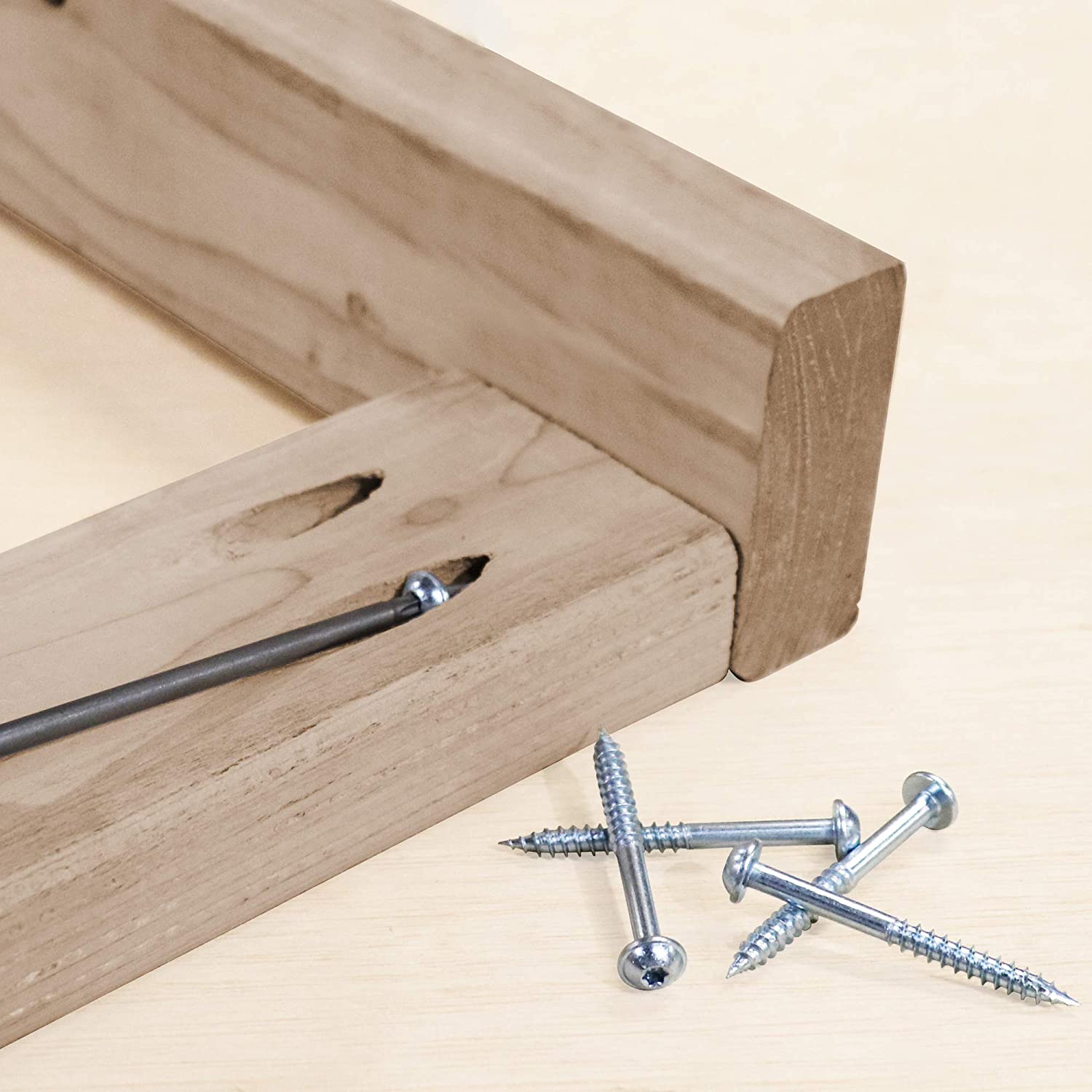

2.5" HDPocketScrews
|
Includes
(1) HD Pocket Hole Jig,
(1) 1/2″ (12.7mm) Split Design Stop Collar with Flat,
(1) Hex key,
(1) 1/2″ (12.7mm) PocketBit,
(1) 6″ (150mm) T25 Torx® Driver,
(10) 2-1/2″ (63.5mm) T25 Coarse Screws
