Description
The KJD12 230V switch is commonly used on small woodworking machines. Rated at 16 amp, it will be suitable for induction motors up to 1.5hp.
- Simply connect using insulated spade terminals, the connections being clearly marked for input and output.
- It is a no-volt-release type of switch, providing safety in the event of an interruption of power.

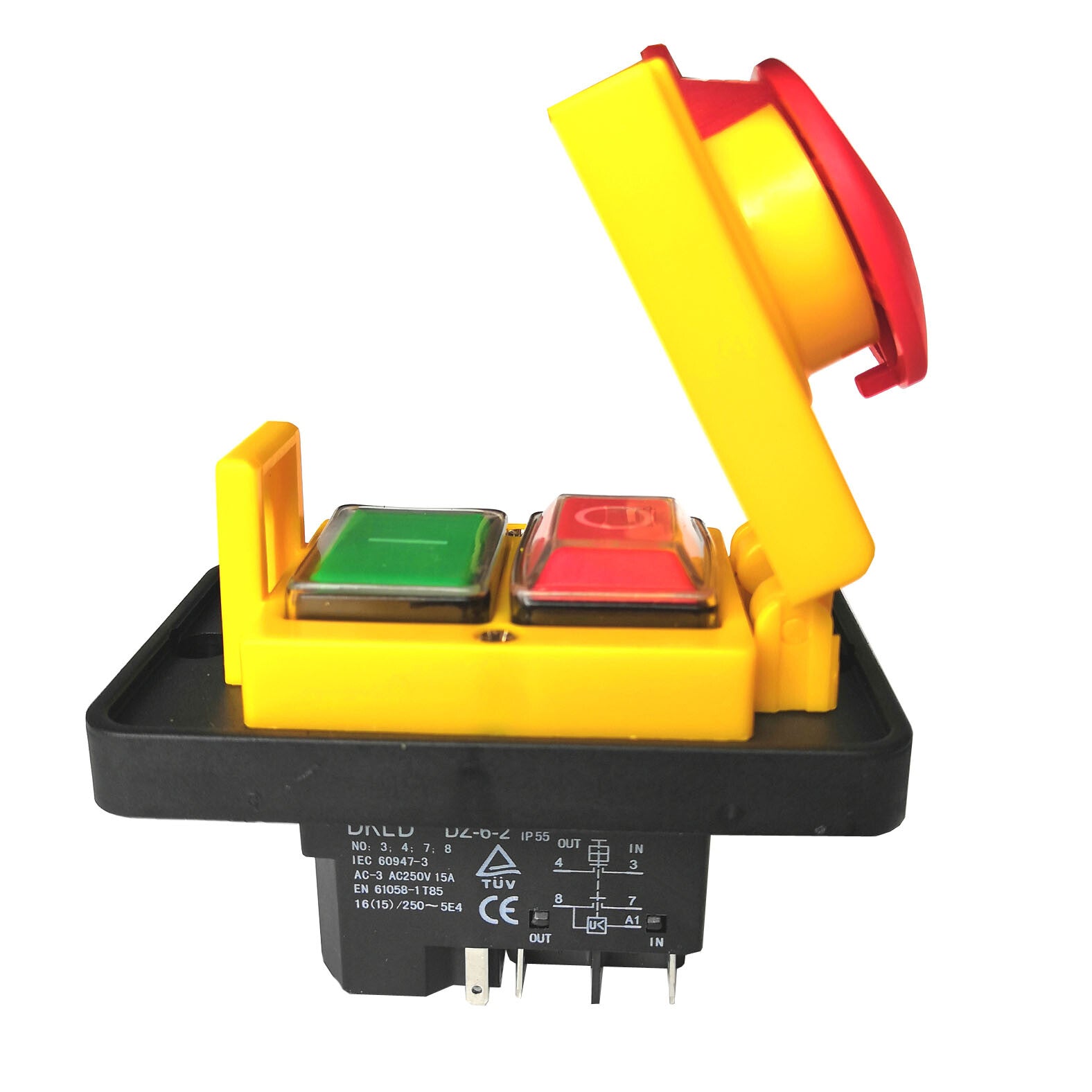

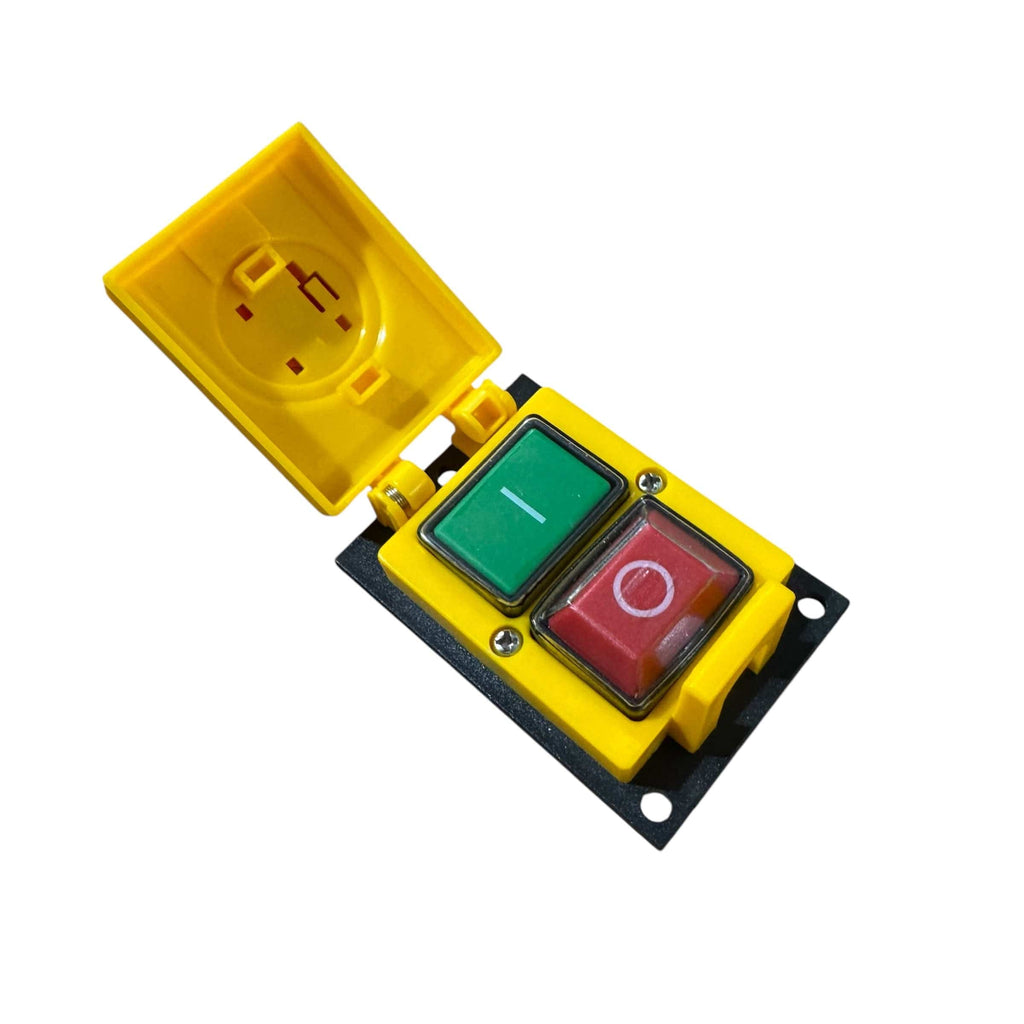

- Fitted with a dust cover and having positive action push buttons plus a large, red self locking Emergency Stop hinging cover.
- Common replacement switch for many woodworking machines, especially lathes
Technical Data
| Hole Size | 40mm x 60mm |
| Rated | 16Amp |
| Max HP Motor | 1.5hp 1.1Kw |
Includes
1x Switch
Terminal Lugs not included
